En partner för din produktion

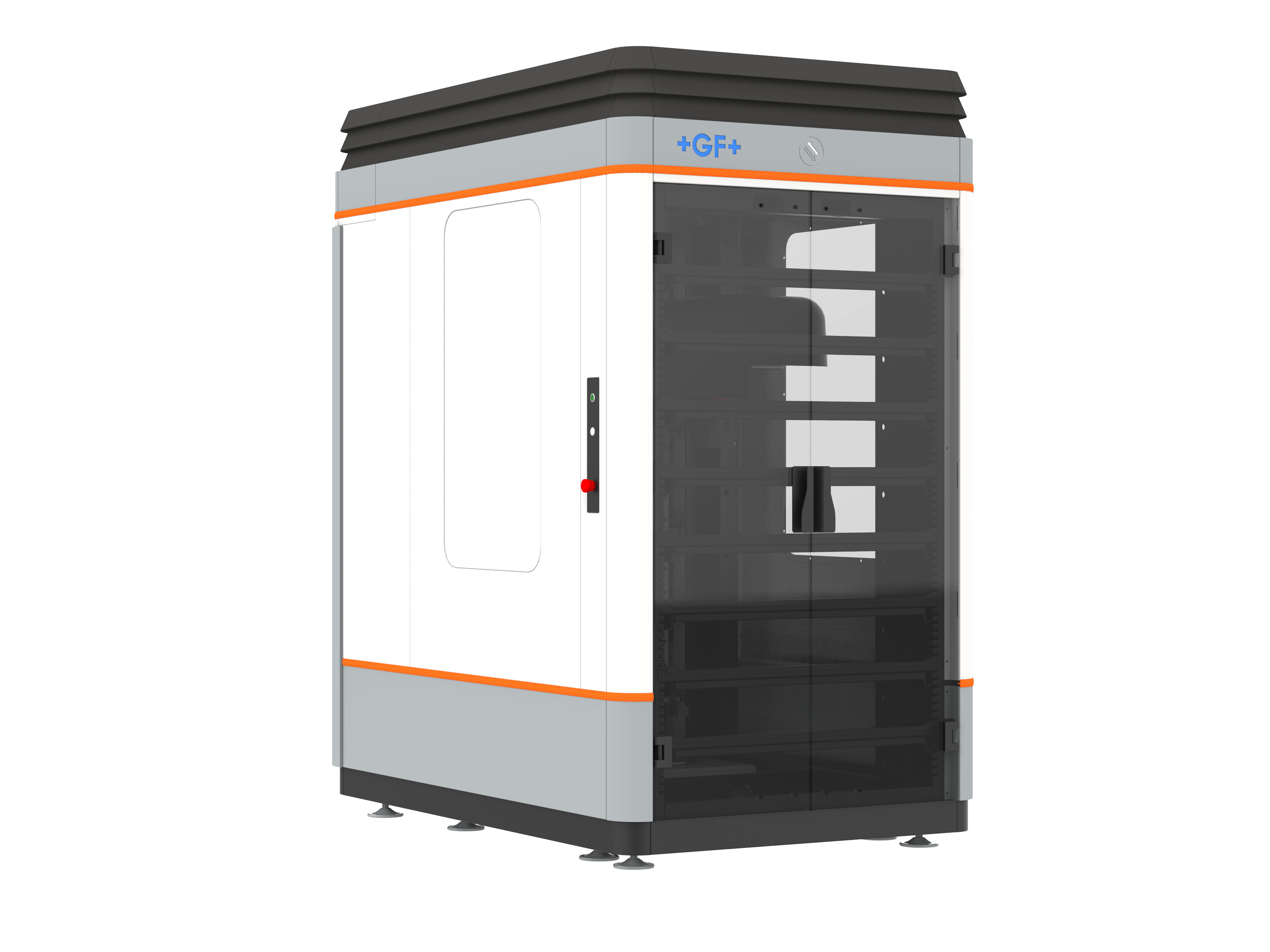

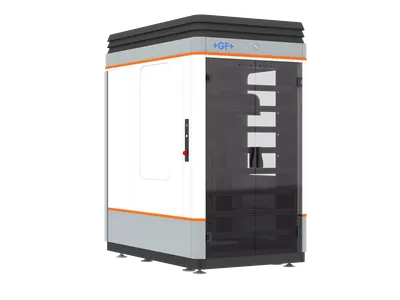

Modulär kabinettrobot för palettbaserad automation.
Magasinskapacitet
Det finns två typer av magasin, light (L) och heavy (H).
Upp till tre magasin kan kopplas till växlingsenheten i valfri kombination.
Magasinskapaciteten definieras helt och hållet av form och storlek på
arbetsstyckena. Små arbetsstycken och/eller verktyg (t.ex. elektroder)
placeras med fördel i light-magasin medan stora arbetsstycken oftast
måste placeras i heavy-magasin.
Möjliga magasinskonfigurationer:
Ett magasin: L eller H.
Två magasin: L + L, H + H eller L + H.
Tre magasin: L + L + L, H + H + H, L + H + H eller L + L + H.
Notera: Varje enskilt magasin är avsett för ett och samma palettsystem.
Kontaktuppgifter:
GF Machining Solutions
System 3R International AB
www.system3r.se
Lars Westin, försäljningschef och distriktsansvarig Södra Mellansverige & Norrland
lars.westin@georgfischer.com 070-306 21 58
Per Nilsson, distriktsansvarig Södra Sverige
per.nilsson@georgfischer.com 070-200 94 29
Leif Hanell, distriktsansvarig Norra Mellansverige
leif.hanell@georgfischer.com 070-620 97 51
Märke: GF Machining Solutions
Typ: Fleroperationsmaskin
Kontaktuppgifter:
System 3R International AB - Vällingby, Sorterargatan 1
16250 Vällingby, Stockholm
Telefon - 08-620 20 00
Foot print: | |
Two light magazines | A = 1290, B = 1730, C = 2460 mm (A = 50.8, B = 68, C = 97 in) |
One light magazine & one heavy magazine | A = 1290, B = 2030, C = 2460 mm (A = 50.8, B = 78, C = 97 in) |
Two heavy magazines | A = 1290, B = 2425, C = 2460 mm (A = 50.8, B = 95.5, C = 97 in) |
Three light magazines | A = 1460, B = 1730, C = 2460 mm (A = 50.8, B = 68, C = 97 in) |
Two light magazines & one heavy magazine | A = 1460, B = 2030, C = 2460 mm (A = 50.8, B = 78, C = 97 in) |
One light magazine & two heavy magazines | A = 1860, B = 2030, C = 2460 mm (A = 73, B = 78, C = 97 in) |
Three heavy magazines | A = 1890, B = 2430, C = 2460 mm (A = 74.4, B = 95.7, C = 97 in) |
Specifications: | |
Transfer weight | 80 kg. (pallet with workpiece) 177.8 lbs (pallet with workpiece) |
Max. X-reach | 1254 mm 49.4 in |
Max. Y-reach | 1500 mm 59 in |
Max. C-rotation | 330° |
Required air pressure | 6 ± 1 bar, 150 litres/minute |
Required power supply | Single-phase, 180-240 V AC, 14 A at 180 V AC, 20 A at 230 V AC. |
Required floor space | 1730x1290x2460 mm (but affected by increased magazine capacity) 68x50,6x97 in (but affected by increased magazine capacity) |
Interface | serial RS-232 |
Double emergency stop |
Options & accessories: |
Loading station |
Draining station |
ID-system with or without automatic scanning |
Internal magazine lighting (LED) |
Cell PC with WSM software |
RS422 interface |
Customer chosen color for outer casings |
Manual rail |
