GFMS WorkPal 1 Automatisk palettväxlare
GFMS WorkPal 1 Automatisk palettväxlare

GFMS WorkPal 1 Automatisk palettväxlare

Fakta om produkten:

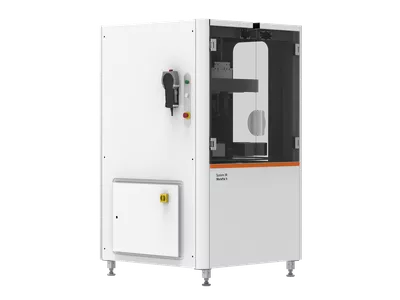

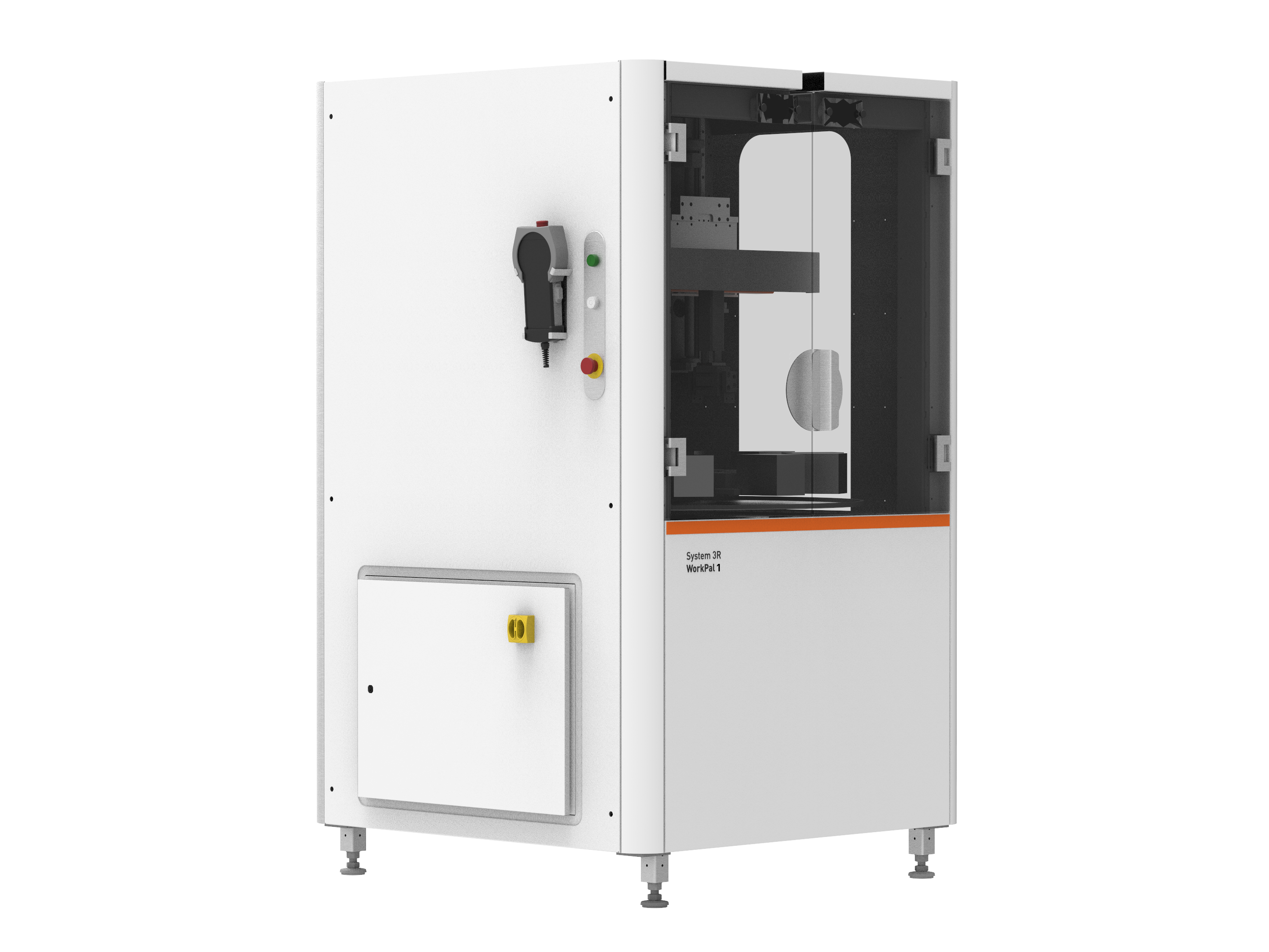

WorkPal 1 är en palletväxlare som kräver minimal golvyta. Den är

framtagen för automatisk växling av paletter till chuckar på maskinbord i

  • fräsmaskiner
  • trådgnistmaskiner
  • lasermaskiner
  • slipmaskiener
  • mätmaskiner

WorkPal 1 har glasdörrar på hela ena sidan vilket ger maximal access till

magasinet. Detta gör det mycket enkelt att ladda i och ur paletterna.


Automation i sin enklaste form

  • Minsta möjliga footprint.
  • 50kg lyftkapacitet.
  • Magasinstallriken anpassas för ett palettsystem ur System 3R:s breda produktprogram.
  • Laddar arbetsstycken till Din fräs-, trådgnist- eller slipmaskin.
  • Lätt att använda, glasdörrarna ger mycket god överblick och åtkomst till magasinet.
  • Torkstation som tillval, lämpligt för trådgnistapplikationer.
  • System 3R CellManager mjukvara med ID-system som option.

Kontaktuppgifter:
GF Machining Solutions
System 3R International AB
www.system3r.se

Lars Westin, försäljningschef och distriktsansvarig Södra Mellansverige & Norrland
lars.westin@georgfischer.com 070-306 21 58
Per Nilsson, distriktsansvarig Södra Sverige
per.nilsson@georgfischer.com 070-200 94 29
Leif Hanell, distriktsansvarig Norra Mellansverige
leif.hanell@georgfischer.com 070-620 97 51

Märke: GF Machining Solutions


Kontaktuppgifter:

System 3R International AB - Vällingby, Sorterargatan 1

16250 Vällingby, Stockholm

Telefon - 08-620 20 00

Hemsida - https://www.gfms.com/content/gfac/s3r/en.html

Specifikation

Technical specifications:
Transfer weight (may be limited by the pallet system)50 kg. (pallet with workpiece)
111 lbs (pallet with workpiece)
Maximum total weight in the magazine300 kg
667 lbs
MR, X and Z axesAC servo motor
Maximum horizontal stroke (X) and speed828 mm, Speed 1200 mm/s
32.6 in
Maximum vertical stroke (Z) and speed400 mm, Speed 650 mm/s
15.7 in
Maximum MR axis stroke and speed360°, Speed 90°/s
Required power supply
single-phase, 180 – 240 V AC, 14 A at 180 V AC, 20 A at 230V
Required air pressure6 ± 1 bar, 150 litres/minute
Required floor space1200 x 1214 mm
47 x 48 in
Interface – serial RS232/422, M function or parallel I/O

Options & accessories


In-built lighting
Integrated drying station with/without thermostat for temperature control
ID-system with or without automatic scanning
Cell PC with WorkShopManager software
Chip guard for Macro 54 & 70U-50167.55
Code carrier3R-863.01-10, 3R-863.01-10M, 3R-863.25-10, 3R-863.30-10 or C690 800
Magazine capacaty/applicationPallet system
No of positions
Table chuck - milling, grinding oder EDMMacro 54 & 70
24, 40 or 60
 Macro with chip guard24
 MacroPT60
 Matrix 110 20
 GPS 70
24, 40 or 60
 GPS 120
20
 Macro Ø 116
20
 MacroMagnum
6, 10 or 12
 Matrix 142 6, 10 or 12
 GPS 240
7
 Dynafix
5
 UPC (fork gripper or RCS)
 ITS 50 24, 40 or 60
 ITS 148 6, 10 or 12
Table chuck - wire EDMMacro WEDM12
 MacroTwin WEDM4
 PSW (RDS grippper)12
Wire EDM B-axisMacro 54 & 7012, 24 or 40
 ITS 50 12, 24 or 40
