CIMAT Automatic Balancers for Disc-Shaped Rotors
Fakta om produkten:

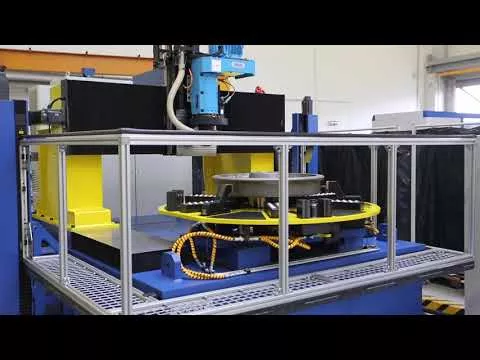

Vertical balancing machines are a proven technology for balancing disc-shaped rotors such as: pulleys, flywheel, circular saw blades and many others.

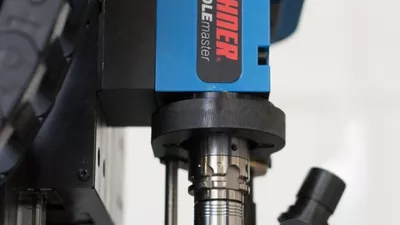

To achieve consistent balancing quality and make the process more efficient and cost-effective, even in case of small-batch production, the machine can be now equipped with 1-axis automatic drilling system. To make it more versatile and capable of automatic balancing more types of rotors, the drilling spindle can be set up in a vertical or horizontal orientation. As a result the machine is a real all-rounder spindle which combines high performance ratio with economic price. Moreover, it is already adapted for robot integration for automatic loading in case of production volume increase.
The perfect solution for:
- machine industry
- automotive industry
- railway industry
- aircraft industry
- pump impellers manufacturers
- agriculture industry.
Advantages of the machine:
- automatic drilling correction in the range of 90 degrees

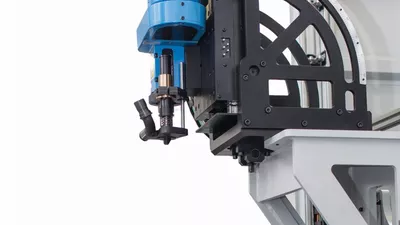

- drilling at any angle to the axis of the detail, not only vertically and horizontally
- compact design
- fastening system
- automatic chip extraction
- fast fixing the rotor
- limiter of the radial force influencing the extension of the service life of the spindle and the chuck, easy manual loading.
Vertikala balanseringsmaskiner är en beprövad teknik för balansering av skivformade rotorer som: remskivor, svänghjul, cirkelsågblad och många andra.
Märke: Burke Porter Group & CIMAT
Typ: Balancer
År: 2021
Kontaktuppgifter:
CIMAT, 4 Bogdan Raczkowski St.
PL-85-862 Bydgoszcz, Polen-Region
Telefon - +48 52 363 1676
Hemsida - https://www.cimat-balancing.com/
Specifikation
Maximum rotor weight: 30 kg.
Rotor diameter range: 80-400 mm
Maximum rotor and tooling height: 400 mm
Balancing speed: 600-1 200 rpm
Measurement uncertainty: 4 gmm
Unbalance Reduction Ratio (URR): min. 95 %
Drilling depth: Servo controlled
Drilling column: Tilted
Rotor clamping: Automatic
Rotor indexing: Automatic
Mass correction: Automatic drilling
